L-858 I-LUX/D-Lux Guidance Sign - Available Options
URL Name
L-858-I-LUX-D-Lux-Guidance-Sign---Available-Options
Summary
The L-858 I-Lux and D-Lux guidance signs offer configurable options such as on/off switches, mode selections, LED light out indicators, view ports, and external power cords to support specific operational and maintenance requirements.

Content

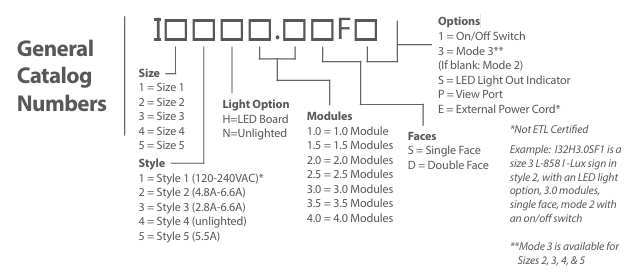

I-Lux Options:


1 = On/Off Switch.
3 = Mode 3 (If blank: Mode 2).
S = LED Light Out Indicator.
P = View Port.
E = External Power Cord.
The external power cord is not ETL certified.
Mode 3 is available for Sizes 2, 3, 4, & 5.

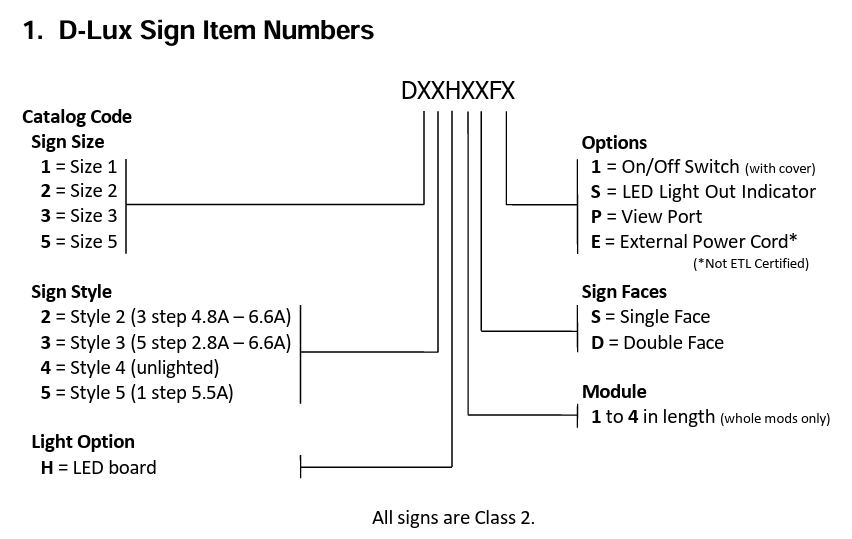

D-Lux Options:


1 = On/Off Switch (with cover).
S = LED Light Out Indicator.
P = View Port.
E = External Power Cord.
The external power cord is not ETL certified.




Airport Lighting Company | L-858 I-LUX/D-Lux Guidance Signs
