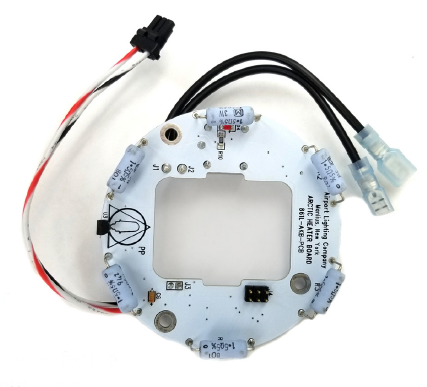

Arctic Kit Overview

Option code 5 = Optional arctic kit (6.6A only)
The arctic kit includes heater components to maintain operation in cold conditions.
Higher fixture VA and total VA ratings apply when arctic kit is installed

Installation or Replacement Procedure

Turn off the power and lockout the Constant Current Regulator
Remove the lens with ring by opening the 2 clasps
Remove the 2 screws holding down the light engine
Unplug the LED inline connector and remove the light engine
Unplug the Arctic Kit inline connector, for arctic kit
control circuit
Unplug the Arctic Kit Power connectors, at driver board, and on
primary incoming power connection
Remove the Arctic Kit from the light engine disk by squeezing the
snap in standoffs on the underside of the light engine disk
On most fixture the arctic Kit will slide off over the LED light engine, on fixture
that use 6 LEDs, the LED mount needs to be removed from the light engine.
Take a new Arctic Kit and orient it so the 3 standoffs are over the 3 holes in the light engine disk.
Pass the wires thru the opening in the light engine disk
Snap the Arctic Kit in place

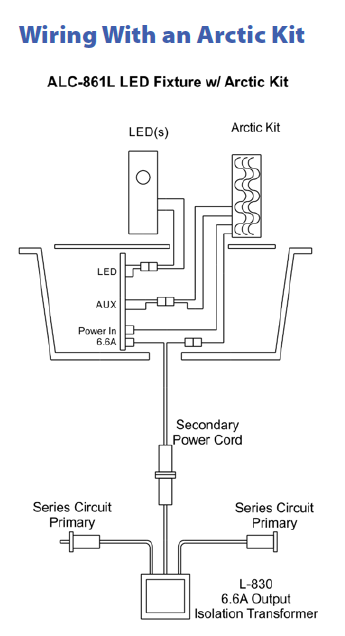

Connect the power leads, the male lead connects to the incoming power lead, the female lead
connects to the driver board
Connect the Arctic Kit inline connector, for Arctic Kit control
Screw in the 2 screws holding down the light engine Note the 2 tabs on the outside of the base
Note the 2 recesses on the inside of the lens ring
Note the 2 recesses on the inside of the lens ring
Check the orientation of the glass lens. Making certain that the color of glass is on the same side as
the color of the LEDs (when applicable)
The lens ring has 2 recesses which will fall over the 2 tabs on the outside of the light base
When the lens with ring is in place, clip the 2 clasps down
Power up the fixture and check that the LEDs are lighting up correctly
When the temperature outside is below freezing, the lens should feel warm after operating at 6.6 amps
for 10-15 minutes
A very small red LED will light up when the heater is activated



Performance Impact

Fixture VA and total VA increase significantly with arctic kit
Isolation Transformer upgrade to 30/45W for most colors.
Blue and red/green remain compatible with 10/15W transformer even with arctic kit.
