L861 LED Medium Intensity Elevated Edge Light

Title

L861 LED Medium Intensity Elevated Edge Light - Replacement Parts

URL Name

L861-LED-Medium-Intensity-Elevated-Edge-Light-Replacement-Parts

Summary

This article lists all replacement parts, head assemblies, bases, lenses, columns, gaskets, couplings, hold down boards, and accessories for the L861 LED Medium Intensity Elevated Edge Light series.

Content

Head Assemblies

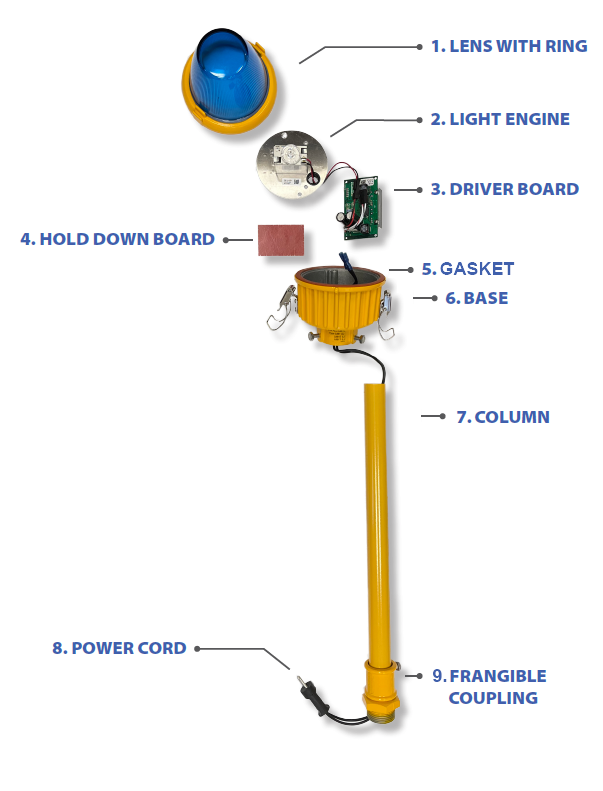

Includes housing, LED module, cord, power supply, gasket, and lens

861L-ZZ-XX-L Head Assembly
861L-ZZ-XX-V-L Head Assembly LED (Voltage)*

ZZ = Fixture color
XX = Overall height of fixture - 14", 20", 24" or 30" - other heights available
Reference Available Options

L861 Base w/Power Cord - XX = Overall Height of Fixture (in) - 14, 18, 20, 24, or 30

Part Number	Part Name
217B-BA-xx	Base, Latches, Power Cord

Columns - Other heights available

Part Number	Part Name
61C-14	7" (14" overall height of fixture)
61C-20	13" (20" overall height of fixture)
61C-24	17" (24" overall height of fixture)
61C-30	23" (30" overall height of fixture)

Lens & Ring - XX = Lens color

Color	Part Number
Clear/Red	61L-CR
Clear	61L-CC
Clear/Yellow	61L-CY
Yellow/Red	61L-YR
Green/Yellow	61L-GY
Green/Clear	61L-GC
Red/Green	61L-RG
Red	61L-RR
Green/Obscure	61L-GO
Blue	61L-BB
Green	61L-GG

Electronics

Color	Light Engine Part Number	Driver Board Part Number
Clear	861LEDMOD-CC	61PCB-PWR-HC
Clear / Yellow	861LEDMOD-CC	61PCB-PWR-HC
Clear / Red	861LEDMOD-CC	61PCB-PWR-HC
Yellow	861LEDMOD-CC	61PCB-PWR-HC
Yellow / Red	861LEDMOD-CC	61PCB-PWR-HC
Green	861LEDMOD-GG	61PCB-PWR-LC-GG
Green / Clear	861LEDMOD-GC	61PCB-PWR-LC-GC
Green / Yellow	861LEDMOD-GY	61PCB-PWR-LC-GY
Red	861LEDMOD-CC	61PCB-PWR-HC
Red / Green	861LEDMOD-RG	61PCB-PWR-LC-RG
Green / Obscure	861LEDMOD-GO	61PCB-PWR-LC-XO
Blue	861LEDMOD-BB	61PCB-PWR-LC

Other Parts

Part Number	Part Name
61-GSK	Lens Gasket
58	Frangible Coupling, 1.5"
58-2	Frangible Coupling, 2"
61-HDB	Hold Down Board

Accessories

Part Number	Part Name
34-L830-16X	L-830-16 10/15W Transformer
34-L830-17X	L-830-17 20/25W Transformer
34-L830-1X	L-830-1 30/45W Transformer
82-D4	L-823 Primary Connector Kit - #8 AWG
82-S-D4	L-823 Super Connector Kit
71 L-867B	12" baseplate 1.5" hub
72 L-867B	12" baseplate 2" hub
80	Heat shrink tubing - adhesive throughout
81	Heat shrink tubing - adhesive ends only

x - M (Monroe/Integro), A (ABB/Amerace)
