Product Identification

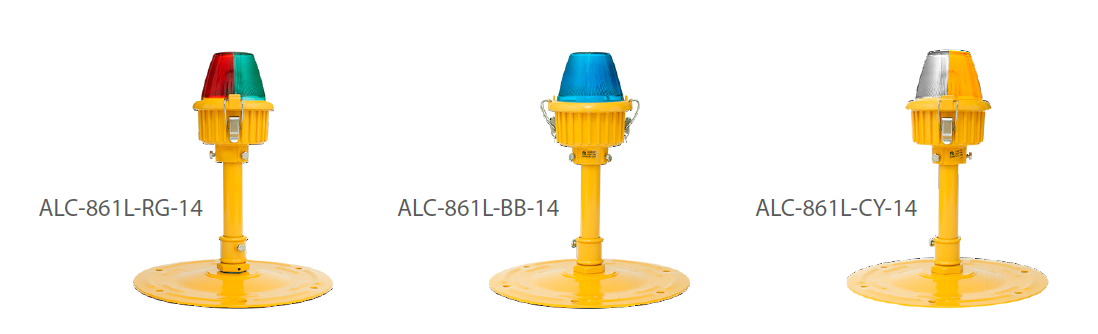

LED Elevated Medium Intensity Edge Light L861(L), L861E(L), and L861T(L) Series ALC-861L

Introduction:

The ALC-861L Series from Airport Lighting Company is a series of elevated LED airfield lights that meet the L861 Medium Intensity Elevated Runway Light, L861E Elevated Runway Threshold Light and the L861T Elevated Taxiway Light specifications. Every light in this series can be delivered with or without an arctic kit.



Compliances (Current Editions)

FAA: AC 150/5345-46 and Engineering Brief No. 67, ETL Certified
Canada: TP 312, para. 5.3.12.7 and Appendix 5B Table 5B-1





Application

Runway Edge
Threshold/End
Non Precision Instrument Flight Rules
Displaced Threshold
Taxiway Edge
Apron Edge


Key Features
The average LED life is 100,000 hours high intensity / 180,000 hours under typical operating conditions
Complies with intensity requirements on 3 or 5 step regulators
Applicable for L-861T (L), L-861 (L) and L-861E (L) requirements
Durable powder coat finish lasts longer
Colored glass lens for easy day time recognition
Reduces power consumption
Double sealing system creates watertight head assembly
Long life LEDs
Rugged solid state components
Cord set sealed to prevent insect entry
Threaded 1.5” frangible coupling or optional 2” thread matches existing baseplates/stakes
IP68
Medium Intensity Edge Light
