Title
L861 LED Medium Intensity Elevated Edge Light - Available Options
URL Name
L861-LED-Medium-Intensity-Elevated-Edge-Light-Available-Options
Summary
This article covers the options available with the L861 LED Medium Intensity Elevated Edge Light

Content

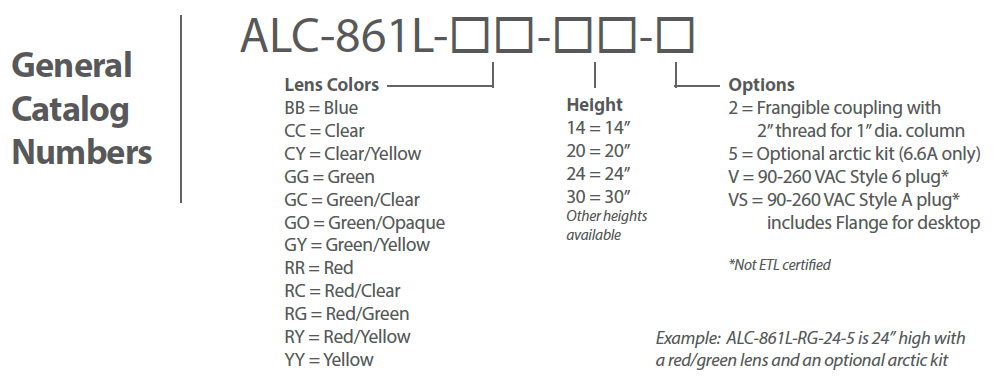

General Catalog Numbering System

The L861 LED Medium Intensity Elevated Edge Lights use a modular catalog numbering format that allows precise configuration. The base format is shown below with all available selections. Selecting the correct combination ensures the unit meets the exact site requirements for intensity, directionality, and installation method.


Lens Colors

Color
Part Number
Blue
BB
Clear
CC
Clear/Yellow
CY
Green
GG
Green/Clear
GC
Green/Opaque
GO
Green/Yellow
GY
Red
RR
Red/Clear
RC
Red/Green
RG
Red/Yellow
RY
Red/Yellow
RY

Height

Height in InchesPart Number
14"14
20"
20
24"24
30"
30
Other heights available upon request

Options

Option
Part Number
Frangible coupling with 2" thread for 1" dia. column
2
Optional arctic kit (6.6A only)
5
90-260 VAC Style 6 plug*
V
90-260 VAC Style A plug* includes Flange for desktop
VS
*Not ETL certified
